Jobsite

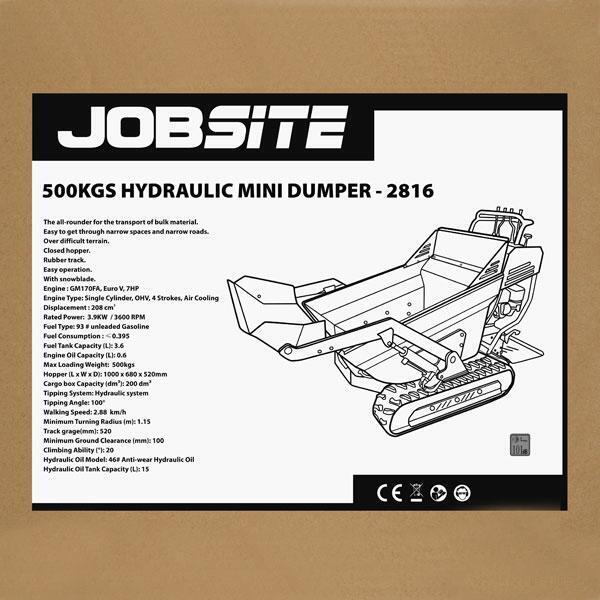

Hydraulic Mini Dumper / Skip Loader - 500kgs capacity

Hydraulic Mini Dumper / Skip Loader - 500kgs capacity

SKU:CT2816

Regular price £4,500.00 GBP
Regular price Sale price £4,500.00 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.
The all-rounder for the transport of bulk material.
Easy to get through narrow spaces and narrow roads
Over difficult terrain
Closed hopper
Rubber track
Easy operation
With snowblade
Engine : GM1 70FA, Euro V, 7HP
Engine Type: Single Cylinder, OHV, 4 Strokes, Air Cooling
Displacement : 208 cm3
Rated Power: 3.9KW / 3600 RPM
Fuel Type: 93 # unleaded Gasoline
Fuel Consumption : =0.395
Fuel Tank Capacity (L): 3.6
Engine Oil Capacity (L): 0.6
Max Loading Weight: 500kgs
Hopper (L x W x D): 1000 x 680 x 520mm
Cargo box Capacity (dm ³): 200 dm ³
Tipping Angle: 100 °
Walking Speed: 2.88 km/h
Minimum Turning Radius (m): 1.15
Track garage(mm): 520
Minimum Ground Clearance (mm): 100
Climbing Ability ( °): 20
Hydraulic Oil Model: 46# Anti-wear Hydraulic Oil
Hydraulic Oil Tank Capacity (L): 15
Sound power level: 1 01 dB
Sound pressure level: 91 dB
Tipping System: Hydraulic system
